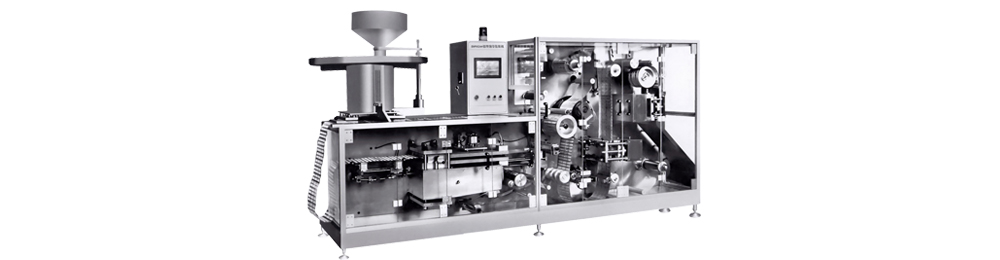

DPH260輥板式泡罩包裝機
DPH260 ROLLER AND PLATE COMBINING TYPE BLISTER PACKING MACHINE
- 特點
板式正壓吹塑成型、輥式熱封、包裝效率高;

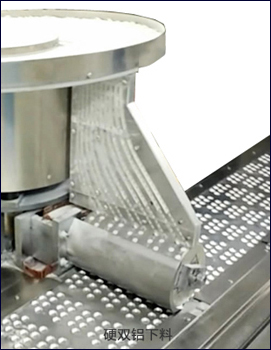

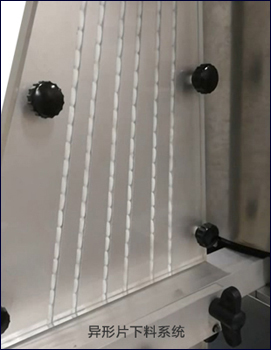

可與通用上料機、掉頭上料機、圓盤上料機配套使用;
PLC控制無級變頻調速,調整范圍廣泛,傳動噪音低,伺服電機控制;
光電踉蹤、浮動對標;
自動打批號,壓斷裂線;
主要元器件均采用進口;
整機采用全封閉方式,符合GMP要求。
Features
The plate forming by positive pressure the roller type heating sealing having higher packing speed.
It is possible to form a complete set with general feeders turning feeders and disk feeders.
Controlled by PLC the stepless frequency conversion variable speeds having wide ad-justment range extreme low noise.
Photoelectric tracking device and floating alignment mark.
Automatically printing serial numbers and pressing breaking line.
Main components are imported.
The machine is totally-enclosed accords with GMP requirements.
- 適用范圍
各種規格的膠襄、素片、糖衣片、膠丸及異型片,巧克力豆、口香糖等固態物料。
Application
Applicable for different specifications of capsules tablets sugar- coated tablets pills and grotesque tablets chewing gum and chocolate beans etc.small food.
- 技術參數 Specifications
最大成型深度 Max forming depth |
10mm |
沖裁次數 Cutting frequency |
≤120次/分(times/Min.) |
包裝效率 Packing speed |
500板/分(plates/Min.) |
包裝材料 Packing material |
PVC 260×0.25mm |
最大步進距離 Max inching |
215mm |
耗氣量 Air consumption |
300L/Min. |
耗水量 Water consumption |
6L/Min. |
電源總功率 Installed power |
13kW |
電壓 Voltage |
380V/50Hz |
外形尺寸(長×寬×高)S ize (L×W×H)? |
3500×1050×1800mm |
重量 Weight |
3000kg |
|
