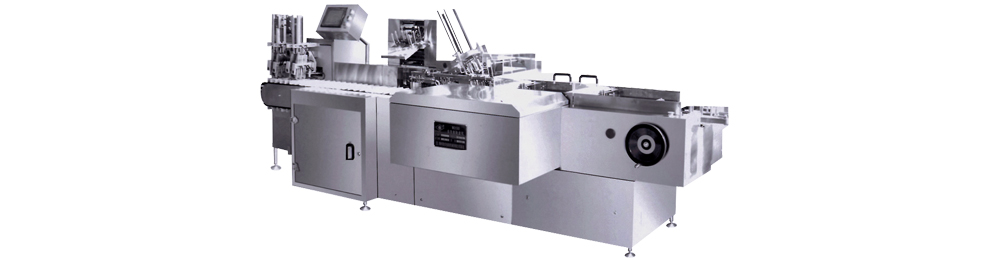

MC150裝盒機
MC150 MULTIFUNCTIONALL BOXING MACHINE
- 特點
PLC控制,無級變頻調速,伺服電機控制;
理板、取盒、折紙、推板、打印批號、封口、輸送等工位由程序控制,連續完成;
人機界面裝置,操作簡單明了;
采用優質不銹鋼材料,符合GMP 標準;
主要電、氣元件均采用進口;
可與各種泡罩包裝機及顆粒包裝機聯線。
Features
PLC control, stepless frequency conversion speed regulation, servo motor control.
The finishing block, take-out box, origami, push plate, printing batch number, sealing, conveying and other work stations are controlled by the program and are continuously completed.
Man-machine interface device, the operation is simple and clear.
Made of high quality stainless steel and in accordance with GMP standards.
Main electrical and pneumatic components are imported.
Can be connected with various blister packaging machines and granule packing machines.
- 適用范圍
各種規格的藥品鋁塑包裝板塊及小型有規則物體的裝盒;既可單機使用又可與泡 罩包裝機組成連線。
Application
Packing of aluminum-plastic packaging plates of various specifications and small regular objects. Can be used in a stand-alone unit or in a blister packer.
- 技術參數 Specifications
包裝效率 Packaging efficiency |
≤150盒/分 |
紙盒材料Carton material |
紙的質量300~350g/㎡(白卡紙或白底板紙); |
最大紙盒尺寸 Maximum carton size |
120×70×60mm(長×寬×高) |
最小紙盒尺寸Minimum tray size |
76×30×15(mm長×寬×高) |
說明書Instruction manual |
紙的質量55~65g/㎡(膠版印刷紙) |
說明書最大尺寸 Manual maximum size |
180×260mm(長×寬) |
說明書最小尺寸 Manual Minimum size |
130×100mm(長×寬) |
耗氣量 Air consumption |
60~90L/Min. |
電源總功率 Installed power |
3.5kW |
電壓 Voltage |
380V/50Hz |
外形尺寸(長×寬×高)Size (L×W×H)?????? |
4300×1440×1600mm |
重量 Weight |
1500kg |
|
